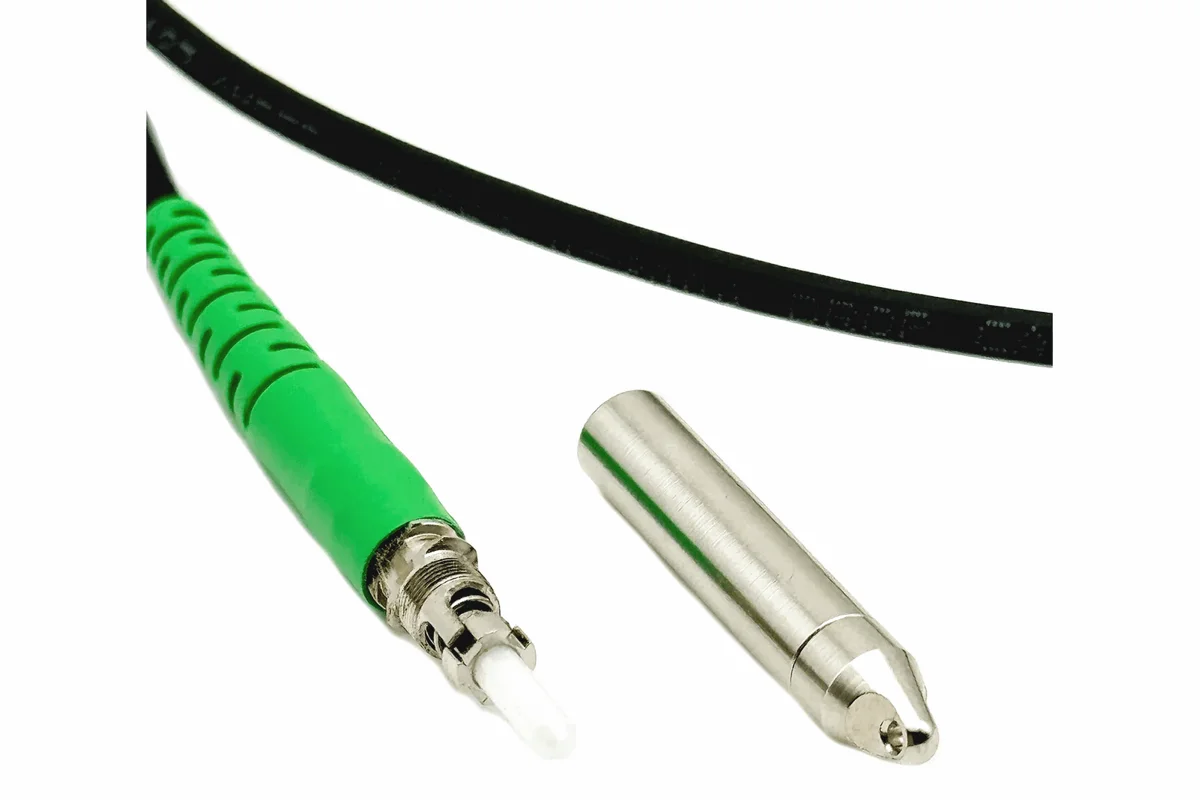

Custom Fiber Patch Cords Built Around Your Link Requirements
Project-configured fiber assemblies for non-standard connectors, lengths, breakouts, boots, jackets, labels and installation environments.
A custom fiber patch cord is specified from the application outward. JHT reviews the two interfaces, fiber, construction, route, environment, identification and approval evidence before production.
Designed around the complete optical link.
Confirm connector compatibility, fiber type, routing and approval requirements as one specification.
Non-standard interfaces
Combine compatible connector types and polish requirements around the actual equipment.
Installation-specific construction
Define cable diameter, jacket, breakout, boot and pulling needs for the route.
Repeatable project identification
Align labels, packaging and test records with drawings and cable schedules.
Define these fields before quotation.
Final availability and performance are confirmed against the selected construction and quantity.
| Configuration field | Available direction | Why it matters |
|---|---|---|
| Application | Equipment, panel and route context | Determines the correct physical construction. |
| Connector ends | Project-defined compatible interfaces | Each mating side must be confirmed. |
| Fiber and count | Singlemode or multimode; simplex, duplex or multi-fiber | Must match transmission and capacity. |
| Cable construction | Diameter, jacket, breakout and boot | Controls routing and environmental fit. |
| Identification | Labels, colors and packaging | Connects assemblies to project records. |
| Approval evidence | Sample, inspection or test records as agreed | Supports repeatable project acceptance. |

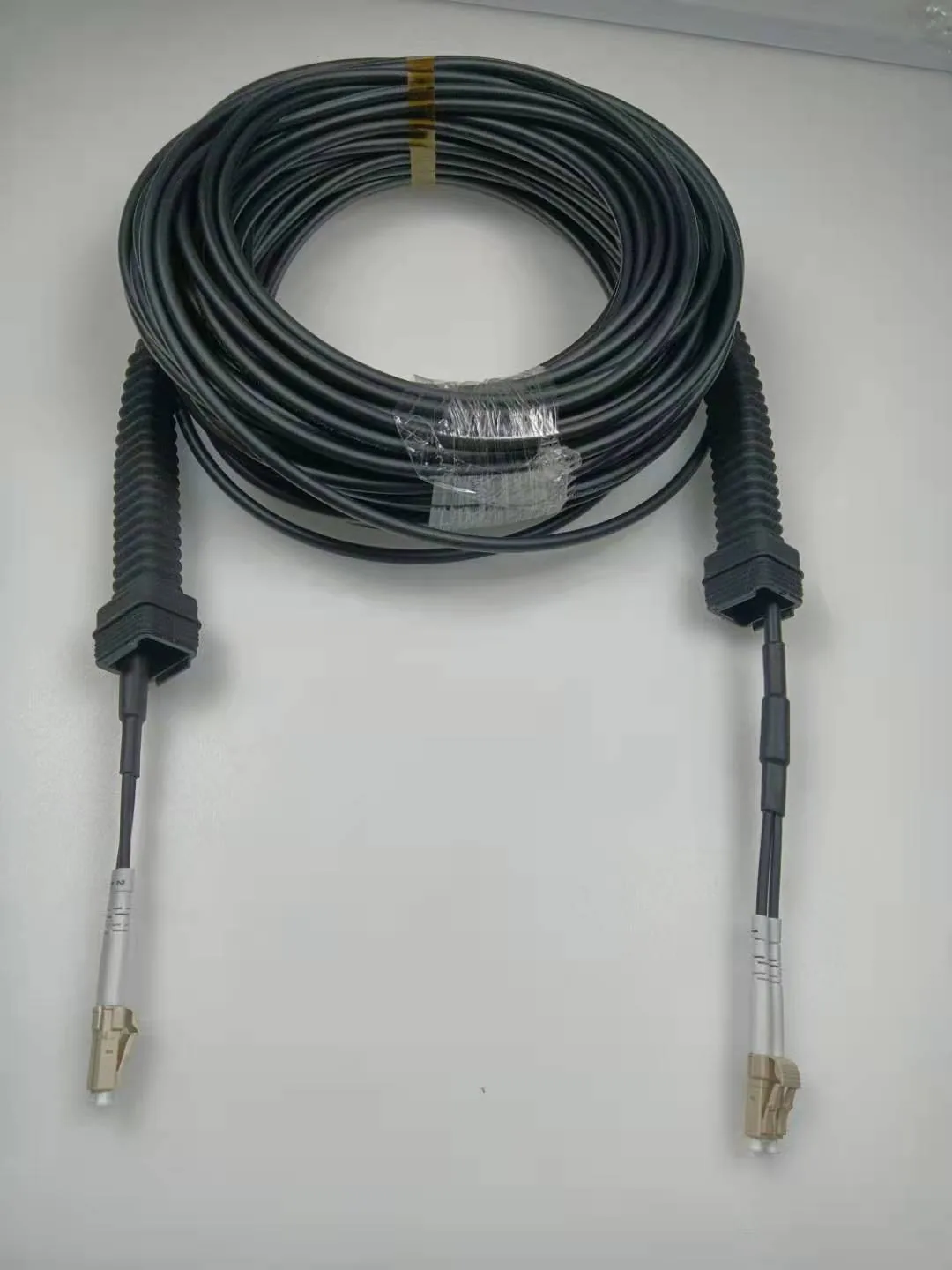

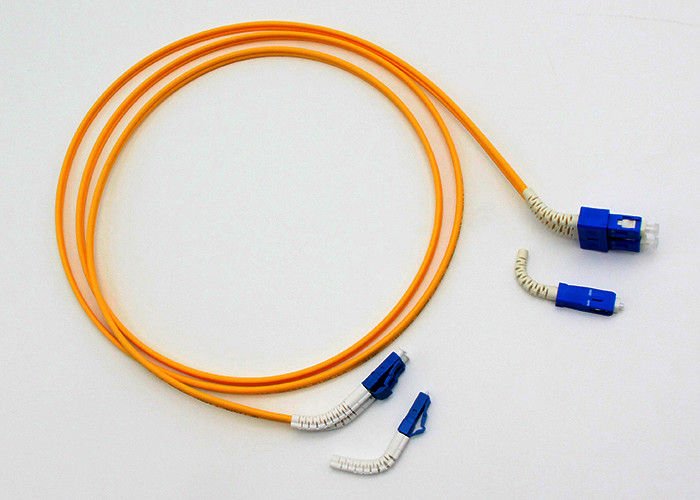

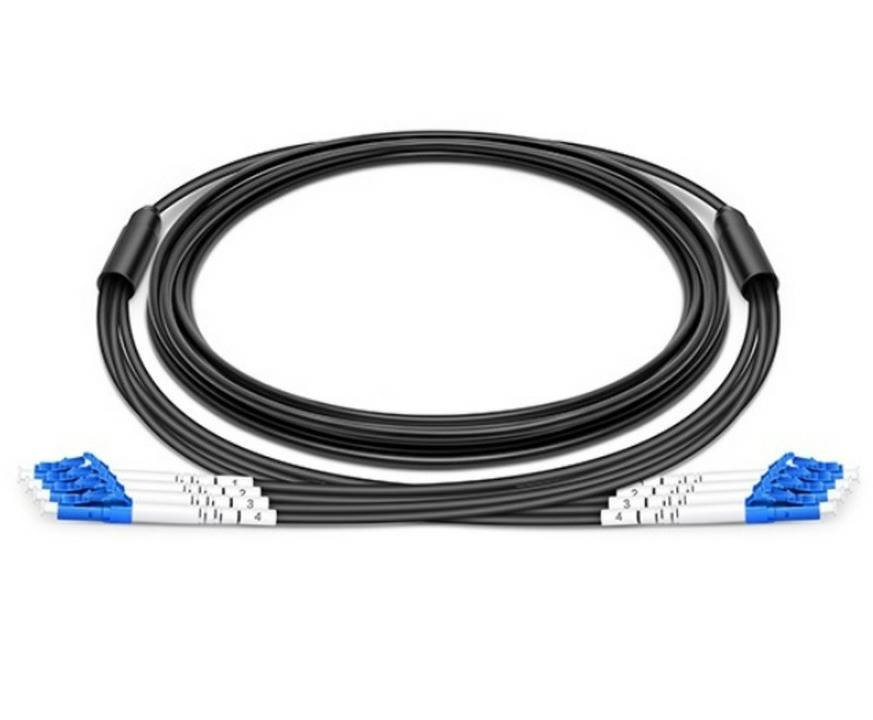

Representative product constructions.
Images are selected from the supplied JHT product material. Confirm the exact appearance for the quoted construction.
Move from link requirement to approved assembly.
Share the application first, then confirm interfaces, construction, identification and test evidence.
Share the link
Equipment, panels, route, quantity and deployment environment.
Define both ends
Connector, polish, fiber mode, construction and length.
Review routing
Jacket, diameter, boot, bend space, labels and packaging.
Agree evidence
Confirm inspection and applicable optical test records.
Questions to resolve before ordering.
Final values are confirmed during RFQ review.
What details should be included in a patch-cord RFQ?
Provide fiber type, connector and polish at each end, simplex or duplex construction, cable diameter, jacket, length, quantity, labels and required test records.
Can JHT support project-specific lengths and labels?
Yes. Lengths, colors, labels and packaging can be reviewed against the project cable schedule before quotation.
What is the fastest way to quote a custom patch cord?
Send a drawing or cable schedule showing both connector ends, fiber, construction, length, quantity, labels and required approval documents.
Configure Custom Fiber Patch Cords for your project.
Send JHT NetFiber your cable schedule, drawing or required connector combination.
