LC-LC Fiber Patch Cords for Reliable Equipment and Panel Links
Duplex and simplex LC-to-LC assemblies for data center, telecom and enterprise patching, configurable around fiber type, polish, jacket, diameter and length.
An LC-LC patch cord connects two LC-compatible ports with a factory-terminated fiber assembly. The complete specification should identify fiber mode, UPC or APC polish, simplex or duplex format, jacket rating, cable diameter and test requirements.
Designed around the complete optical link.
Confirm connector compatibility, fiber type, routing and approval requirements as one specification.
Switch and server links
Compact LC connectivity for equipment ports, optical modules and structured patching.
Panel cross-connects
Organized patching between LC adapter fields in cabinets and distribution areas.
Migration-ready selection
Match fiber type, polarity and connector polish to the installed channel and optics.
Define these fields before quotation.
Final availability and performance are confirmed against the selected construction and quantity.
| Configuration field | Available direction | Why it matters |
|---|---|---|
| Fiber type | OS2, OM3 or OM4 directions | Must match the optics and installed channel. |
| Connector polish | LC/UPC or LC/APC as applicable | Mating interfaces require the same compatible polish. |
| Construction | Simplex or duplex | Defines fiber count and port use. |
| Cable diameter | Application-defined compact or rugged construction | Affects routing density and durability. |
| Jacket and color | LSZH and project-defined identification | Supports environment and visual management. |
| Length and labels | Project-defined | Must match the route and cable schedule. |

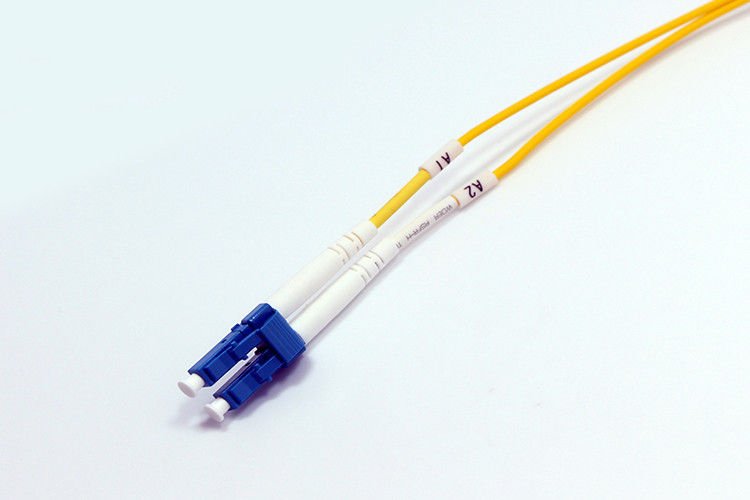

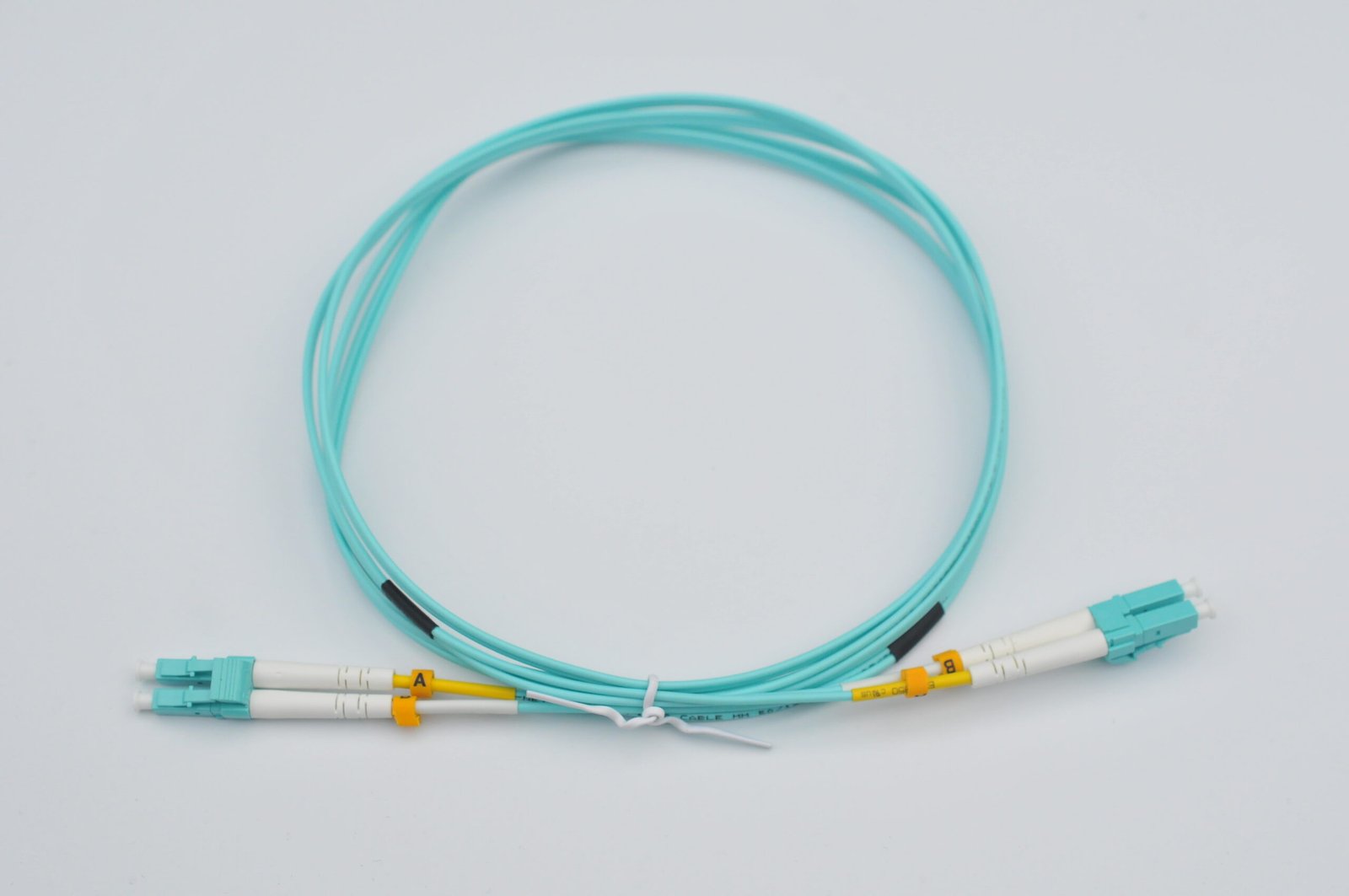

Representative product constructions.
Images are selected from the supplied JHT product material. Confirm the exact appearance for the quoted construction.
Move from link requirement to approved assembly.
Share the application first, then confirm interfaces, construction, identification and test evidence.
Share the link
Equipment, panels, route, quantity and deployment environment.
Define both ends
Connector, polish, fiber mode, construction and length.
Review routing
Jacket, diameter, boot, bend space, labels and packaging.
Agree evidence
Confirm inspection and applicable optical test records.
Questions to resolve before ordering.
Final values are confirmed during RFQ review.
What details should be included in a patch-cord RFQ?
Provide fiber type, connector and polish at each end, simplex or duplex construction, cable diameter, jacket, length, quantity, labels and required test records.
Can JHT support project-specific lengths and labels?
Yes. Lengths, colors, labels and packaging can be reviewed against the project cable schedule before quotation.
When should LC/APC be selected instead of LC/UPC?
Select polish according to the equipment and mating adapter interface. APC and UPC connectors must not be directly mated.
Configure LC-LC Fiber Patch Cords for your project.
Send JHT NetFiber your cable schedule, drawing or required connector combination.
